MICROALTAS

Product Description

MICROATLAS is thick wood veneered Acoustic Wall and Ceiling panel with micro holes on the view-side, offering high-end acoustic performance. MICROATLAS perforated wood panels provide excellent sounds attenuation and a variety of Aesthetic options.

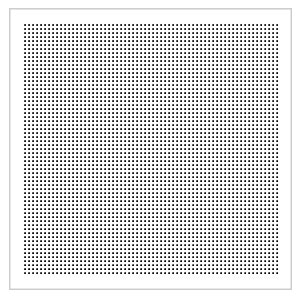

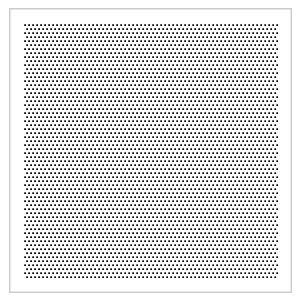

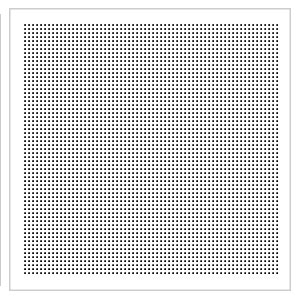

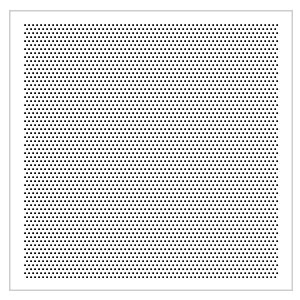

Micro perforated wood Ceiling and Wall panels control noise with 0.5 to 1 mm perforations that disappear from a normal viewing distance. Acoustic fabric is factory attached to the back of the panels and optional acoustic insulation provides NRC performance up to 0.90 for ceiling/ walls.

Excellent acoustic absorption for public spaces, auditoriums and offices with perforations that are almost invisible. Wide range of finishes in wood, lacquer or melamine is available.

As per acoustical studies due to small non visible holes Micro perforated panels are found to have best NRC performance.

Panel Sizes in mm

595 x 595, 1195 x 595

Advantages

• Best possible combination of Acoustics and Aesthetics
• Wide variety of surface finishes available.
• Natural timber veneers, painted finishes, Raw MDF, laminates etc.
• Range of acoustic performance options.
• Various groove profiles for maximum design flexibility.
• Easy to handle, transport, store and install.
• Short acquisition and lead time.
• Durable, long lasting, demountable and reusable.
• Sound treatment applicable to walls and ceilings.
• Enables designers to produce rich, warm spaces.
• It’s ‘Helmholtz Resonator’ concept enhance acoustical properties
• Improved acoustics with FX fleece

Dimensions

The standard dimensions are 1195x595mm and 595x595mm with a thickness of 16 mm. Special sizes are on request.

Materials and finishes

Manufactured on MDF, our panels can be finished with a wide range of wood veneer species RAL or NCS lacquers, laminates or melamine designs.

Custom made

To meet any design requirements a wide variety of perforation choices, edge details, coatings and substrates are available.
